The switch as an ordinary GNU/Linux server
I can't believe it's been over 11 years
In 2014 I wrote an article about the switch as an ordinary GNU/Linux server. This had been my dream since my early days using Linux to build routers and I didn’t know why we didn’t use the same management interfaces on switches as we did on Linux. The folks at Cumulus Networks made this a reality and in 2014 they were kind enough to give me access to some hardware to test things out.
The fact that we manage the switches in our data centres differently than any other server is patently absurd, but we do so because we want to harness the power of a tiny bit of silicon which happens to be able to dramatically speed up the switching bandwidth.
 |
| beware of proprietary silicon, it's absurd! |
A new competitor emerges:
There has been much to this story in the intervening years since, but you can go read about that history elsewhere. One recent development caught my eye, a new company by the name of Novarq is selling a new switch claiming to carry on this tradition.
 |

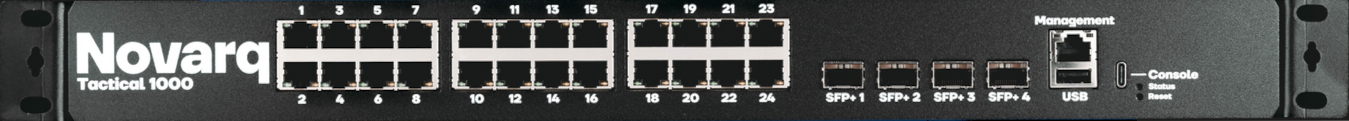

| the switch in question |
They were kind enough to have a short chat with me and to give me access to some hardware to test it out. No money exchanged hands, and I wasn’t told what I could or couldn’t say. What follows is my honest review and advice which I publish in the hopes of helping them succeed for the selfish reason that I think the switching and automation world would be a better place by being able to manage all of your hardware in the exact same way.
Getting Started:
Logging in…
ssh root@<censored> -p <censored>
Linux bookworm-tactical1000 7.0.0-rc4-next-20260320 #1 SMP PREEMPT Thu Apr 2 20:56:11 CEST 2026 aarch64
The programs included with the Debian GNU/Linux system are free software;
the exact distribution terms for each program are described in the
individual files in /usr/share/doc/*/copyright.
Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent
permitted by applicable law.
Last login: Mon Apr 6 18:30:36 2026 from <censored>
root@bookworm-tactical1000:~#
Being curious…
root@bookworm-tactical1000:~# cat .bash_history
ping 172.16.255.2
ping 172.16.222.223
ping 1.1.1.1
ping 172.16.223.183
apt update
nmap
apt install nmap
nmap -sn 172.16.0.1/16
nmap -sn 172.16.222.223
apt purge nmap
cat .bash_history
echo "" > .bash_history
htop
top
exit
ls
exit
root@bookworm-tactical1000:~#
Secrets are gone!
Setup
root@bookworm-tactical1000:~# screen
-bash: screen: command not found
root@bookworm-tactical1000:~# apt install screen
Reading package lists... Done
Building dependency tree... Done
Reading state information... Done
The following packages were automatically installed and are no longer required:
libblas3 liblinear4 liblua5.3-0 libpcap0.8 libpcre3 libssh2-1 lua-lpeg nmap-common
Use 'apt autoremove' to remove them.
The following additional packages will be installed:
libutempter0
Suggested packages:
byobu | screenie | iselect
The following NEW packages will be installed:
libutempter0 screen
0 upgraded, 2 newly installed, 0 to remove and 3 not upgraded.
Need to get 574 kB of archives.
After this operation, 1172 kB of additional disk space will be used.
Do you want to continue? [Y/n] y
Get:1 https://deb.debian.org/debian bookworm/main arm64 libutempter0 arm64 1.2.1-3 [8964 B]
Get:2 https://deb.debian.org/debian bookworm/main arm64 screen arm64 4.9.0-4 [565 kB]
Fetched 574 kB in 1s (970 kB/s)
Selecting previously unselected package libutempter0:arm64.
(Reading database ... 15806 files and directories currently installed.)
Preparing to unpack .../libutempter0_1.2.1-3_arm64.deb ...
Unpacking libutempter0:arm64 (1.2.1-3) ...
Selecting previously unselected package screen.
Preparing to unpack .../screen_4.9.0-4_arm64.deb ...
Unpacking screen (4.9.0-4) ...
Setting up libutempter0:arm64 (1.2.1-3) ...
Setting up screen (4.9.0-4) ...
Processing triggers for libc-bin (2.36-9+deb12u13) ...
Processing triggers for debianutils (5.7-0.5~deb12u1) ...
root@bookworm-tactical1000:~#
In total I installed bash-completion, bridge-utils, ethtool, man,
psmisc, pciutils, screen, tree.
Exploring
root@bookworm-tactical1000:~# pstree
systemd-+-agetty
|-cron
|-dbus-daemon
|-dhclient
|-login---bash
|-sshd---sshd---bash---screen---screen---bash---pstree
|-systemd---(sd-pam)
|-systemd-journal
|-systemd-logind
|-systemd-timesyn---{systemd-timesyn}
`-systemd-udevd
root@bookworm-tactical1000:~#
Surprisingly little going on.
root@bookworm-tactical1000:~# uname -a
Linux bookworm-tactical1000 7.0.0-rc4-next-20260320 #1 SMP PREEMPT Thu Apr 2 20:56:11 CEST 2026 aarch64 GNU/Linux
ARM64 hardware as expected. This is a mostly stock Debian AIUI.
root@bookworm-tactical1000:~# cat /proc/cpuinfo
processor : 0
BogoMIPS : 500.00
Features : fp asimd evtstrm aes pmull sha1 sha2 crc32 cpuid
CPU implementer : 0x41
CPU architecture: 8
CPU variant : 0x0
CPU part : 0xd03
CPU revision : 4
root@bookworm-tactical1000:~# free -g
total used free shared buff/cache available
Mem: 1 0 1 0 0 1
Swap: 0 0 0
root@bookworm-tactical1000:~# free -m
total used free shared buff/cache available
Mem: 1985 136 1621 0 295 1849
Swap: 0 0 0
root@bookworm-tactical1000:~# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/root 974M 567M 340M 63% /
devtmpfs 977M 0 977M 0% /dev
tmpfs 993M 0 993M 0% /dev/shm
tmpfs 398M 572K 397M 1% /run
tmpfs 5.0M 0 5.0M 0% /run/lock
tmpfs 199M 0 199M 0% /run/user/0
root@bookworm-tactical1000:~#
This machine is not fast. Storage and RAM are a bit tight.
root@bookworm-tactical1000:~# ps auxww
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 1 0.0 0.5 103212 11740 ? Ss Apr03 0:10 /sbin/init
root 2 0.0 0.0 0 0 ? S Apr03 0:00 [kthreadd]
root 3 0.0 0.0 0 0 ? S Apr03 0:00 [pool_workqueue_release]
root 4 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-rcu_gp]
root 5 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-sync_wq]
root 6 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-kvfree_rcu_reclaim]
root 7 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-slub_flushwq]
root 8 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-netns]
root 13 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-mm_percpu_wq]
root 14 0.0 0.0 0 0 ? S Apr03 0:00 [ksoftirqd/0]
root 15 0.0 0.0 0 0 ? I Apr03 0:00 [rcu_preempt]
root 16 0.0 0.0 0 0 ? S Apr03 0:00 [rcu_exp_par_gp_kthread_worker/0]
root 17 0.0 0.0 0 0 ? S Apr03 0:00 [rcu_exp_gp_kthread_worker]
root 18 0.0 0.0 0 0 ? S Apr03 0:00 [migration/0]
root 19 0.0 0.0 0 0 ? S Apr03 0:00 [cpuhp/0]
root 20 0.0 0.0 0 0 ? S Apr03 0:00 [kdevtmpfs]
root 21 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-inet_frag_wq]
root 22 0.0 0.0 0 0 ? I Apr03 0:00 [rcu_tasks_kthread]
root 23 0.0 0.0 0 0 ? S Apr03 0:00 [kauditd]
root 25 0.0 0.0 0 0 ? S Apr03 0:00 [oom_reaper]
root 26 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-writeback]
root 27 0.0 0.0 0 0 ? S Apr03 0:02 [kcompactd0]
root 28 0.0 0.0 0 0 ? SN Apr03 0:00 [ksmd]
root 29 0.0 0.0 0 0 ? SN Apr03 0:02 [khugepaged]
root 30 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-kblockd]
root 31 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-kintegrityd]
root 32 0.0 0.0 0 0 ? S Apr03 0:00 [watchdogd]
root 33 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-quota_events_unbound]
root 36 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-rpciod]
root 37 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-xprtiod]
root 38 0.0 0.0 0 0 ? S Apr03 0:00 [kswapd0]
root 39 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-nfsiod]
root 40 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/u5:0]
root 68 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-e00c0000.switch-mact]
root 69 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-e00c0000.switch-stats]
root 70 0.0 0.0 0 0 ? S Apr03 0:00 [irq/23-sparx5-ptp]
root 71 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-uas]
root 72 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-sdhci]
root 73 0.0 0.0 0 0 ? S Apr03 0:00 [irq/26-mmc0]
root 75 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-mld]
root 76 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-ipv6_addrconf]
root 77 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-mmc_complete]
root 79 0.0 0.0 0 0 ? S Apr03 0:00 [irq/29-sfp0-mod-def0]
root 80 0.0 0.0 0 0 ? S Apr03 0:00 [irq/30-sfp0-los]
root 81 0.0 0.0 0 0 ? S Apr03 0:00 [irq/31-sfp0-tx-fault]
root 82 0.0 0.0 0 0 ? S Apr03 0:00 [irq/32-sfp1-mod-def0]
root 83 0.0 0.0 0 0 ? S Apr03 0:00 [irq/33-sfp1-los]
root 84 0.0 0.0 0 0 ? S Apr03 0:00 [irq/34-sfp1-tx-fault]
root 85 0.0 0.0 0 0 ? S Apr03 0:00 [irq/35-sfp2-mod-def0]
root 86 0.0 0.0 0 0 ? S Apr03 0:00 [irq/36-sfp2-los]
root 87 0.0 0.0 0 0 ? S Apr03 0:00 [irq/37-sfp2-tx-fault]
root 88 0.0 0.0 0 0 ? S Apr03 0:00 [irq/38-sfp3-mod-def0]
root 89 0.0 0.0 0 0 ? S Apr03 0:00 [irq/39-sfp3-los]
root 90 0.0 0.0 0 0 ? S Apr03 0:00 [irq/40-sfp3-tx-fault]
root 91 0.0 0.0 0 0 ? S Apr03 0:02 [jbd2/mmcblk0p5-8]
root 92 0.0 0.0 0 0 ? I< Apr03 0:00 [kworker/R-ext4-rsv-conversion]
root 121 0.0 0.4 49956 8948 ? Ss Apr03 0:02 /lib/systemd/systemd-journald
root 137 0.0 0.3 24892 6316 ? Ss Apr03 0:00 /lib/systemd/systemd-udevd
systemd+ 141 0.0 0.3 90524 7088 ? Ssl Apr03 0:02 /lib/systemd/systemd-timesyncd
root 220 0.0 0.1 4116 2360 ? Ss Apr03 0:00 /usr/sbin/cron -f
message+ 238 0.0 0.1 8508 3908 ? Ss Apr03 0:01 /usr/bin/dbus-daemon --system --address=systemd: --nofork --nopidfile --systemd-activation --syslog-only
root 242 0.0 0.3 17216 7416 ? Ss Apr03 0:01 /lib/systemd/systemd-logind
root 362 0.0 0.1 5524 3572 ? Ss Apr03 0:00 dhclient -4 -v -i -pf /run/dhclient.eth28.pid -lf /var/lib/dhcp/dhclient.eth28.leases -I -df /var/lib/dhcp/dhclient6.eth28.leases eth28
root 366 0.0 0.0 0 0 ? S Apr03 0:00 [irq/20-e20101a8.mdio-mii:03]
root 397 0.0 0.0 2652 1572 tty1 Ss+ Apr03 0:00 /sbin/agetty -o -p -- \u --noclear - linux
root 398 0.0 0.1 7856 3528 ttyAT0 Ss Apr03 0:00 /bin/login -p --
root 399 0.0 0.4 16352 8928 ? Ss Apr03 0:00 sshd: /usr/sbin/sshd -D [listener] 0 of 10-100 startups
root 406 0.0 0.4 19548 10152 ? Ss Apr03 0:00 /lib/systemd/systemd --user
root 407 0.0 0.2 104276 4820 ? S Apr03 0:00 (sd-pam)
root 413 0.0 0.1 4468 3496 ttyAT0 S+ Apr03 0:00 -bash
root 2722 0.0 0.0 0 0 ? I< Apr05 0:00 [kworker/0:1H-kblockd]
root 3158 0.0 0.0 0 0 ? I 06:57 0:00 [kworker/0:0-mm_percpu_wq]
root 3424 0.0 0.0 0 0 ? I 15:49 0:06 [kworker/u4:0-events_power_efficient]
root 3462 0.0 0.0 0 0 ? I 17:30 0:06 [kworker/u4:4-events_power_efficient]
root 3701 0.0 0.0 0 0 ? I 18:59 0:00 [kworker/0:3]
root 3704 0.0 0.0 0 0 ? I 19:00 0:00 [kworker/u4:1-events_unbound]
root 3733 0.0 0.1 4648 2824 ? Ss 19:02 0:00 SCREEN
root 3734 0.0 0.1 4048 3276 pts/1 Ss 19:02 0:00 /bin/bash
root 4098 0.1 0.0 0 0 ? I 19:05 0:01 [kworker/u4:2-events_unbound]
root 5180 0.0 0.5 19704 10356 ? Ss 19:17 0:00 sshd: root@notty
root 5186 0.0 0.0 2840 1988 ? Ss 19:17 0:00 /usr/lib/openssh/sftp-server
root 5187 0.0 0.5 19544 10296 ? Ss 19:17 0:00 sshd: root@pts/0
root 5193 0.0 0.1 4048 3236 pts/0 Ss 19:18 0:00 -bash
root 5196 0.0 0.1 3944 2408 pts/0 S+ 19:18 0:00 screen -xRR
root 5291 0.0 0.0 0 0 ? I< 19:21 0:00 [kworker/0:2H]
root 5310 0.0 0.0 0 0 ? I 19:26 0:00 [kworker/u4:3-events_power_efficient]
root 5314 200 0.1 8056 3904 pts/1 R+ 19:29 0:00 ps auxww
root@bookworm-tactical1000:~#
Mostly what you’d expect.
root@bookworm-tactical1000:~# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host noprefixroute
valid_lft forever preferred_lft forever
2: eth0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:01 brd ff:ff:ff:ff:ff:ff
3: eth1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:02 brd ff:ff:ff:ff:ff:ff
4: eth2: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:03 brd ff:ff:ff:ff:ff:ff
5: eth3: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:04 brd ff:ff:ff:ff:ff:ff
6: eth4: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:05 brd ff:ff:ff:ff:ff:ff
7: eth5: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:06 brd ff:ff:ff:ff:ff:ff
8: eth6: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:07 brd ff:ff:ff:ff:ff:ff
9: eth7: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:08 brd ff:ff:ff:ff:ff:ff
10: eth8: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:09 brd ff:ff:ff:ff:ff:ff
11: eth9: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:0a brd ff:ff:ff:ff:ff:ff
12: eth10: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:0b brd ff:ff:ff:ff:ff:ff
13: eth11: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:0c brd ff:ff:ff:ff:ff:ff
14: eth12: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:0d brd ff:ff:ff:ff:ff:ff
15: eth13: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:0e brd ff:ff:ff:ff:ff:ff
16: eth14: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:0f brd ff:ff:ff:ff:ff:ff
17: eth15: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:10 brd ff:ff:ff:ff:ff:ff
18: eth16: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:11 brd ff:ff:ff:ff:ff:ff
19: eth17: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:12 brd ff:ff:ff:ff:ff:ff
20: eth18: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:13 brd ff:ff:ff:ff:ff:ff
21: eth19: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:14 brd ff:ff:ff:ff:ff:ff
22: eth20: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:15 brd ff:ff:ff:ff:ff:ff
23: eth21: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:16 brd ff:ff:ff:ff:ff:ff
24: eth22: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:17 brd ff:ff:ff:ff:ff:ff
25: eth23: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:18 brd ff:ff:ff:ff:ff:ff
26: eth24: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:19 brd ff:ff:ff:ff:ff:ff
27: eth25: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:1a brd ff:ff:ff:ff:ff:ff
28: eth26: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:1b brd ff:ff:ff:ff:ff:ff
29: eth27: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
link/ether 5e:37:b6:54:3b:1c brd ff:ff:ff:ff:ff:ff
30: eth28: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 5e:37:b6:54:3b:1e brd ff:ff:ff:ff:ff:ff
inet 192.168.99.100/24 brd 192.168.99.255 scope global dynamic eth28
valid_lft 5587sec preferred_lft 5587sec
inet6 fe80::5c37:b6ff:fe54:3b1e/64 scope link
valid_lft forever preferred_lft forever
root@bookworm-tactical1000:~#
Lots of beautiful ports! They may wish to use a different name for the ports to aid in automation.
root@bookworm-tactical1000:~# tree /etc/udev/
/etc/udev/
|-- hwdb.d
|-- rules.d
`-- udev.conf
3 directories, 1 file
root@bookworm-tactical1000:~# tree /etc/systemd/network
/etc/systemd/network
0 directories, 0 files
root@bookworm-tactical1000:~# brctl show
root@bookworm-tactical1000:~# networkctl
WARNING: systemd-networkd is not running, output will be incomplete.
IDX LINK TYPE OPERATIONAL SETUP
1 lo loopback - unmanaged
2 eth0 ether - unmanaged
3 eth1 ether - unmanaged
4 eth2 ether - unmanaged
5 eth3 ether - unmanaged
6 eth4 ether - unmanaged
7 eth5 ether - unmanaged
8 eth6 ether - unmanaged
9 eth7 ether - unmanaged
10 eth8 ether - unmanaged
11 eth9 ether - unmanaged
12 eth10 ether - unmanaged
13 eth11 ether - unmanaged
14 eth12 ether - unmanaged
15 eth13 ether - unmanaged
16 eth14 ether - unmanaged
17 eth15 ether - unmanaged
18 eth16 ether - unmanaged
19 eth17 ether - unmanaged
20 eth18 ether - unmanaged
21 eth19 ether - unmanaged
22 eth20 ether - unmanaged
23 eth21 ether - unmanaged
24 eth22 ether - unmanaged
25 eth23 ether - unmanaged
26 eth24 ether - unmanaged
27 eth25 ether - unmanaged
28 eth26 ether - unmanaged
29 eth27 ether - unmanaged
30 eth28 ether - unmanaged
30 links listed.
root@bookworm-tactical1000:~# cat /etc/network/interfaces
# interfaces(5) file used by ifup(8) and ifdown(8)
# Include files from /etc/network/interfaces.d:
source /etc/network/interfaces.d/*
root@bookworm-tactical1000:~# ls /etc/network/interfaces.d/
dhcp
root@bookworm-tactical1000:~# cat /etc/network/interfaces.d/dhcp
auto lo
iface lo inet loopback
auto eth28
iface eth28 inet dhcp
root@bookworm-tactical1000:~#
Nothing happening here…
Hardware:
Overall the hardware left me wanting more. I think this is a good start, but it’s not the “enterprise-grade” switch I was hoping for for the simple reason that I don’t know any businesses that can live without 48 port switches or PoE. I think this is firmly in the SMB category for now, and I hope they break through into the mainstream. I think it’s an excellent jumping point to help them build their upstream relationships and prepare for the next steps.
root@bookworm-tactical1000:~# lspci -v
pcilib: Cannot open /proc/bus/pci
lspci: Cannot find any working access method.
root@bookworm-tactical1000:~# ls /sys/bus/pci
ls: cannot access '/sys/bus/pci': No such file or directory
root@bookworm-tactical1000:~# cat /proc/1/cgroup
0::/init.scope
root@bookworm-tactical1000:~# zcat /proc/config.gz > zconfig
root@bookworm-tactical1000:~# cat zconfig | grep PCI
CONFIG_HAVE_PCI=y
CONFIG_GENERIC_PCI_IOMAP=y
# CONFIG_PCI is not set
# CONFIG_COMMON_CLK_RS9_PCIE is not set
root@bookworm-tactical1000:~# lsmod
Module Size Used by
root@bookworm-tactical1000:~#
Performance:
I wasn’t able to assess performance, since this was really a standalone test
rig. The ASIC in this switch is the Microchip LAN9696 which isn’t hugely
powerful, but should do for most use-cases. I’m not an ASIC specialist, so I

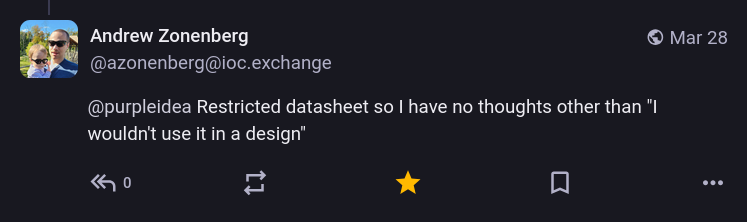

look to others. I asked @[email protected]
what he thought to which he replied:
 |
| Restricted datasheet so I have no thoughts other than “I wouldn't use it in a design” |
I do know that this chip can’t handle 48 ports, so that limits its future use. Maybe Microchip have something else that would suit that purpose? I can live with a restricted datasheet as long as Novarq can fully implement what’s needed in the open.
Operating system:
Despite my great love for the Debian project and what it stands for, I do not see it as a technologically forward-thinking distro. As a result, I rarely recommend its use these days. I’d love to see this switch running a modern upstream like Fedora. That would demonstrate its worth as a modern peer in my GNU+Linux datacentre stack.
I want to see systemd-networkd and other modern networking tools being used. I
also want to see a good declarative configuration story in this space. All of
this is lacking at the moment.
My understanding is that all of the relevant Linux kernel patches and userspace
tweaks are not upstream yet, but that this work is well underway, and Novarq
has assured me that this is a core goal. Great job folks!
Switchdev:
Switchdev is the name of
the Linux kernel magic that offloads (forwards) the data plane work from the
kernel. Basically you use the familiar Linux ip and iptables commands you’re
used to, and Linux causes the ASIC to do the packet pushing on your behalf.
On the subject of integrating with the standard interfaces, more work may be needed, and TBQH, I’m not the hardware specialist here.
root@bookworm-tactical1000:~# ethtool -p eth28
Cannot identify NIC: Operation not supported
root@bookworm-tactical1000:~# lspci -v
pcilib: Cannot open /proc/bus/pci
lspci: Cannot find any working access method.
root@bookworm-tactical1000:~# devlink dev eswitch show
Failed to connect to devlink Netlink
root@bookworm-tactical1000:~# bridge fdb show
33:33:00:00:00:01 dev eth0 self permanent
33:33:00:00:00:01 dev eth1 self permanent
33:33:00:00:00:01 dev eth2 self permanent
33:33:00:00:00:01 dev eth3 self permanent
33:33:00:00:00:01 dev eth4 self permanent
33:33:00:00:00:01 dev eth5 self permanent
33:33:00:00:00:01 dev eth6 self permanent
33:33:00:00:00:01 dev eth7 self permanent
33:33:00:00:00:01 dev eth8 self permanent
33:33:00:00:00:01 dev eth9 self permanent
33:33:00:00:00:01 dev eth10 self permanent
33:33:00:00:00:01 dev eth11 self permanent
33:33:00:00:00:01 dev eth12 self permanent
33:33:00:00:00:01 dev eth13 self permanent
33:33:00:00:00:01 dev eth14 self permanent
33:33:00:00:00:01 dev eth15 self permanent
33:33:00:00:00:01 dev eth16 self permanent
33:33:00:00:00:01 dev eth17 self permanent
33:33:00:00:00:01 dev eth18 self permanent
33:33:00:00:00:01 dev eth19 self permanent
33:33:00:00:00:01 dev eth20 self permanent
33:33:00:00:00:01 dev eth21 self permanent
33:33:00:00:00:01 dev eth22 self permanent
33:33:00:00:00:01 dev eth23 self permanent
33:33:00:00:00:01 dev eth24 self permanent
33:33:00:00:00:01 dev eth25 self permanent
33:33:00:00:00:01 dev eth26 self permanent
33:33:00:00:00:01 dev eth27 self permanent
33:33:00:00:00:01 dev eth28 self permanent
01:00:5e:00:00:01 dev eth28 self permanent
33:33:ff:54:3b:1e dev eth28 self permanent
root@bookworm-tactical1000:~# cd /sys/class/net/eth28/
root@bookworm-tactical1000:/sys/class/net/eth28# ls -l
total 0
-r--r--r-- 1 root root 4096 Apr 3 09:00 addr_assign_type
-r--r--r-- 1 root root 4096 Apr 6 22:13 addr_len
-r--r--r-- 1 root root 4096 Apr 3 09:00 address
-r--r--r-- 1 root root 4096 Apr 6 22:13 broadcast
-rw-r--r-- 1 root root 4096 Apr 6 22:13 carrier
-r--r--r-- 1 root root 4096 Apr 6 22:13 carrier_changes
-r--r--r-- 1 root root 4096 Apr 6 22:13 carrier_down_count
-r--r--r-- 1 root root 4096 Apr 6 22:13 carrier_up_count
-r--r--r-- 1 root root 4096 Apr 6 22:13 dev_id
-r--r--r-- 1 root root 4096 Apr 6 22:13 dev_port
lrwxrwxrwx 1 root root 0 Apr 6 22:13 device -> ../../../e00c0000.switch
-r--r--r-- 1 root root 4096 Apr 6 22:13 dormant
-r--r--r-- 1 root root 4096 Apr 6 22:13 duplex
-rw-r--r-- 1 root root 4096 Apr 6 22:13 flags
-rw-r--r-- 1 root root 4096 Apr 6 22:13 gro_flush_timeout
-rw-r--r-- 1 root root 4096 Apr 6 22:13 ifalias
-r--r--r-- 1 root root 4096 Apr 6 22:13 ifindex
-r--r--r-- 1 root root 4096 Apr 3 09:00 iflink
-r--r--r-- 1 root root 4096 Apr 6 22:13 link_mode
-rw-r--r-- 1 root root 4096 Apr 6 22:13 mtu
-r--r--r-- 1 root root 4096 Apr 3 09:00 name_assign_type
-rw-r--r-- 1 root root 4096 Apr 6 22:13 napi_defer_hard_irqs
-rw-r--r-- 1 root root 4096 Apr 6 22:13 netdev_group
lrwxrwxrwx 1 root root 0 Apr 6 22:13 of_node -> ../../../../../../firmware/devicetree/base/axi/switch@e00c0000/ethernet-ports/port@29
-r--r--r-- 1 root root 4096 Apr 6 22:13 operstate
lrwxrwxrwx 1 root root 0 Apr 6 22:13 phydev -> ../../../e20101a8.mdio/mdio_bus/e20101a8.mdio-mii/e20101a8.mdio-mii:03
-r--r--r-- 1 root root 4096 Apr 3 09:00 phys_port_name
-r--r--r-- 1 root root 4096 Apr 6 22:13 phys_switch_id
drwxr-xr-x 2 root root 0 Apr 6 22:13 power
-rw-r--r-- 1 root root 4096 Apr 6 22:13 proto_down
drwxr-xr-x 11 root root 0 Apr 6 22:13 queues
-r--r--r-- 1 root root 4096 Apr 6 22:13 speed
drwxr-xr-x 2 root root 0 Apr 6 22:13 statistics
lrwxrwxrwx 1 root root 0 Jun 26 2025 subsystem -> ../../../../../../class/net
-r--r--r-- 1 root root 4096 Apr 6 22:13 testing
-rw-r--r-- 1 root root 4096 Apr 6 22:13 threaded
-rw-r--r-- 1 root root 4096 Apr 6 22:13 tx_queue_len
-r--r--r-- 1 root root 4096 Apr 3 09:00 type
-rw-r--r-- 1 root root 4096 Jun 26 2025 uevent
root@bookworm-tactical1000:/sys/class/net/eth28# cat phys_switch_id
5e37b6543b00
root@bookworm-tactical1000:/sys/class/net/eth28# cat phys_port_name
p29
root@bookworm-tactical1000:/sys/class/net/eth28#
Not sure what’s going on here… Perhaps there’s still some work to do.
root@bookworm-tactical1000:~# ethtool eth28
Settings for eth28:
Supported ports: [ TP MII ]
Supported link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Supported pause frame use: Symmetric Receive-only
Supports auto-negotiation: Yes
Supported FEC modes: Not reported
Advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Advertised pause frame use: Symmetric Receive-only
Advertised auto-negotiation: Yes
Advertised FEC modes: Not reported
Link partner advertised link modes: 10baseT/Half 10baseT/Full
100baseT/Half 100baseT/Full
1000baseT/Full
Link partner advertised pause frame use: Symmetric Receive-only
Link partner advertised auto-negotiation: Yes
Link partner advertised FEC modes: Not reported
Speed: 1000Mb/s
Duplex: Full
Auto-negotiation: on
master-slave cfg: preferred master
master-slave status: master
Port: Twisted Pair
PHYAD: 3
Transceiver: external
MDI-X: Unknown (auto)
Link detected: yes
root@bookworm-tactical1000:~#
Bridging:
I want a switch, so I assume I need to…
root@bookworm-tactical1000:~# ip link add br0 type bridge
root@bookworm-tactical1000:~# ip link set eth6 master br0
root@bookworm-tactical1000:~# ip link set eth7 master br0
root@bookworm-tactical1000:~# brctl show
bridge name bridge id STP enabled interfaces
br0 8000.eeed49fda19c no eth6
eth7
root@bookworm-tactical1000:~# bridge -s link
8: eth6: <BROADCAST,MULTICAST> mtu 1500 master br0 state disabled priority 32 cost 100
9: eth7: <BROADCAST,MULTICAST> mtu 1500 master br0 state disabled priority 32 cost 100
root@bookworm-tactical1000:~#
Again, I couldn’t test this, so I hope good documentation is coming soon.
Mgmt Config:
I tried to build mgmt directly on the
switch, but the debian golang version is so ancient, and it wasn’t immediately
obvious how to get something modern on there so I gave up and did a cross-build:
time env CGO_ENABLED=0 GOARCH=arm64 go build -ldflags=github.com/purpleidea/mgmt="-X main.program=mgmt -X main.version=tactical" -o mgmt-linux-arm64 -tags 'noaugeas novirt nodocker'
With all the main components compiled in, mgmt sits at a whopping 157M. It
could be trimmed down to optimize for this hardware, but there hasn’t been a
customer request for this yet.
root@bookworm-tactical1000:~# ./mgmt-linux-arm64 --version
tactical
Made a custom version for the test =D
root@bookworm-tactical1000:~# ./mgmt-linux-arm64 run --tmp-prefix lang hello0.mcl
This is: mgmt, version: tactical
Copyright (C) James Shubin and the project contributors
Written by James Shubin <[email protected]> and the project contributors
21:37:16 main: start: 1775511436860679385
21:37:16 cli: lang: lexing/parsing...
21:37:16 cli: lang: import: /root/
21:37:16 cli: lang: running type unification...
21:37:16 cli: lang: unification: found a solution of length: 6
21:37:16 cli: lang: collecting files...
21:37:16 main: warning: working prefix directory is temporary!
21:37:16 main: working prefix is: /tmp/mgmt-bookworm-tactical1000-3992880798
21:37:23 pgp: created key: 07CE4F49
21:37:23 main: no seeds specified!
21:37:23 etcd: running...
21:37:23 etcd: waiting for server...
21:37:23 etcd: server: runServer: (newCluster=true): bookworm-tactical1000=http://localhost:2380
21:37:23 etcd: server: starting...
21:37:23 etcd: server: ready
21:37:23 main: etcd is ready!
21:37:23 main: waiting...
21:37:23 main: running...
21:37:23 gapi: lang: lexing/parsing...
21:37:23 gapi: lang: lexing/parsing took: 2.49542ms
21:37:23 gapi: lang: import: /
21:37:23 gapi: lang: interpolating took: 67.272µs
21:37:23 gapi: lang: scope building took: 661.277µs
21:37:23 gapi: lang: running type unification...
21:37:23 gapi: lang: unification: found a solution of length: 6
21:37:23 gapi: lang: type unification took: 1.575736ms
21:37:23 gapi: lang: building function graph...
21:37:23 gapi: lang: building function graph took: 243.234µs
21:37:23 gapi: lang: function graph: Vertices(3), Edges(0)
21:37:23 gapi: lang: function engine initializing...
21:37:23 main: waiting...
21:37:23 gapi: lang: stream...
21:37:23 gapi: lang: function engine starting...
21:37:23 gapi: lang: interpret: interpreting...
21:37:23 gapi: generating new graph...
21:37:23 main: new graph took: 1.104µs
21:37:23 engine: autoedge: building...
21:37:23 main: auto edges took: 425.135µs
21:37:23 engine: autogroup: algorithm: wrappedGrouper: NonReachabilityGrouper...
21:37:23 main: auto grouping took: 378.495µs
21:37:23 main: resource topological sort took: 14.776µs
21:37:23 main: send/recv building took: 848ns
21:37:23 main: commit...
21:37:23 engine: graph sync...
21:37:23 main: export cleanup took: 36.616µs
21:37:23 main: graph: Vertices(1), Edges(0)
21:37:23 main: waiting...
21:37:23 engine: file[/tmp/mgmt-hello-world]: copy 29 bytes
^C21:37:26 interrupted by ^C
21:37:26 main: destroy...
21:37:26 main: deploy: exited
21:37:26 main: loop: exited
21:37:26 engine: graph sync...
21:37:26 etcd: server: runServer: done!
21:37:26 etcd: exited!
21:37:26 main: goodbye!
root@bookworm-tactical1000:~#
It works!
The next step would be using the net resource to manage these ports. It would
also make sense to have add a bridge resource as well.
An understated elegant aspect to the design of mgmt is that since it works as
a distributed system, it can receive the “algorithm” (of mcl code) and then
operate autonomously from the rest of the cluster to perform changes. If for
example, the network connection to the rest of the cluster goes down, this isn’t
a problem. It will perform it’s work, and then reconnect when ready. This means
you can modify switch topologies without worrying about the SSH connection
failing midway like you might with other tools.
Furthermore, you can programmatically “roll back” a change and then notify the
sysadmin if a reconfiguration subsequently didn’t pass a “network health check”
meaning mgmt can make it harder to lock yourself out from remote management!
Golang:
The initial blog post that caught my eye was this one
about running golang directly on the switch. I was curious, but switchdev is
what caused me to stick around and dig deeper. I think it might be cute in some
specialized scenarios to run a pure golang switch, but that’s not the mainstream
and switchdev could be and that doesn’t preclude adding golang on top if you’ve
got a mainstream GNU+Linux distro.
Openness:
Their site proclaims: “OPEN STANDARDS. OPEN INFRASTRUCTURE. YOUR SOVEREIGNTY.”. I love this, I’m onboard. But to succeed you have to be better, since freedom isn’t as marketable as we’d all like. Once you’re better, you have to make sure you hold onto those values!
Provisioning:
The switch came fully provisioned so I don’t know how you would do a base install. I would hope that it can UEFI (PXE) netboot like all of my other servers.
Port numbering:
Just a small thought for the future. Look at a 48 port patch panel.
 |

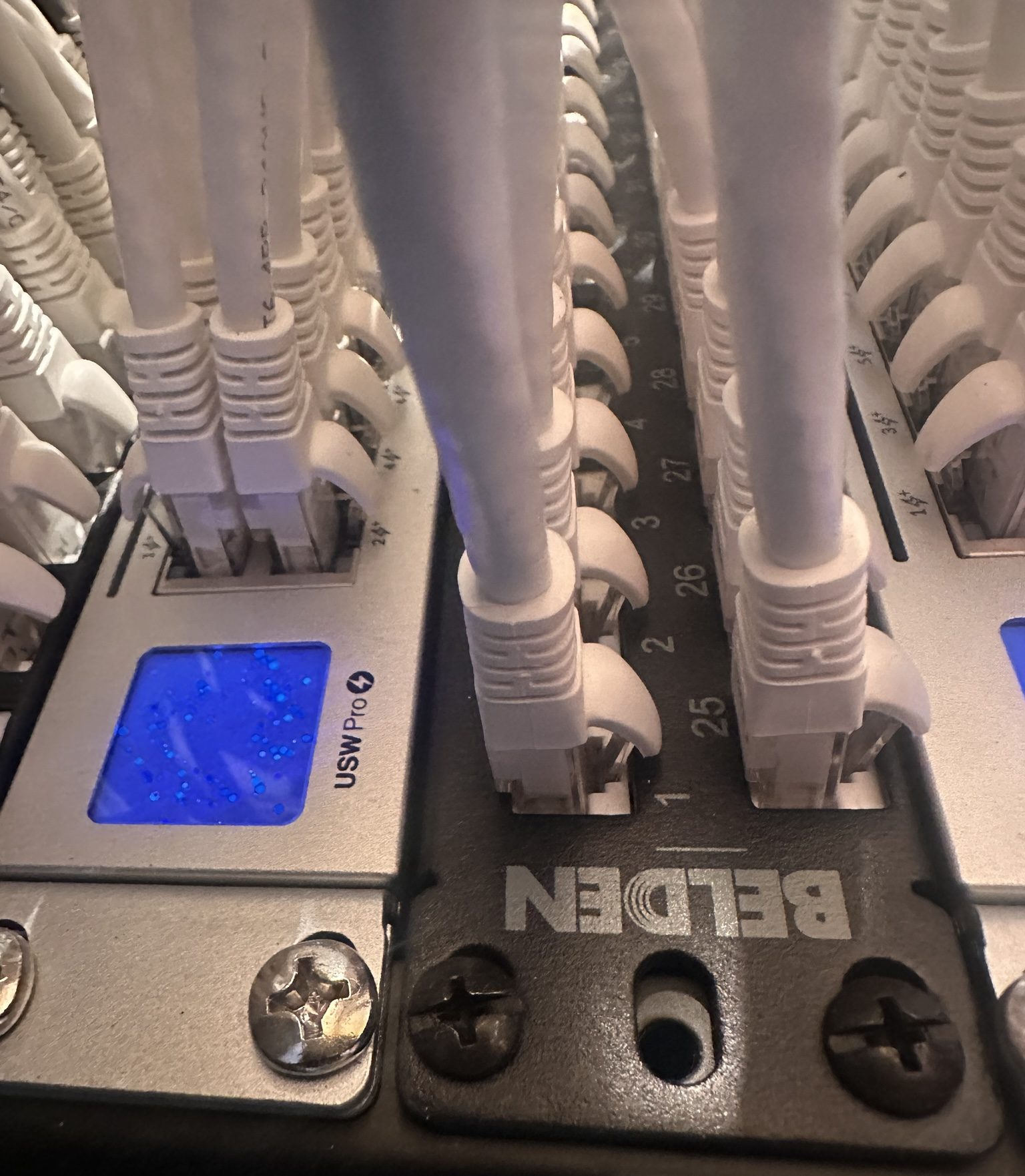

| 48 port patch panel |
Now look at a 48 port switch…
 |

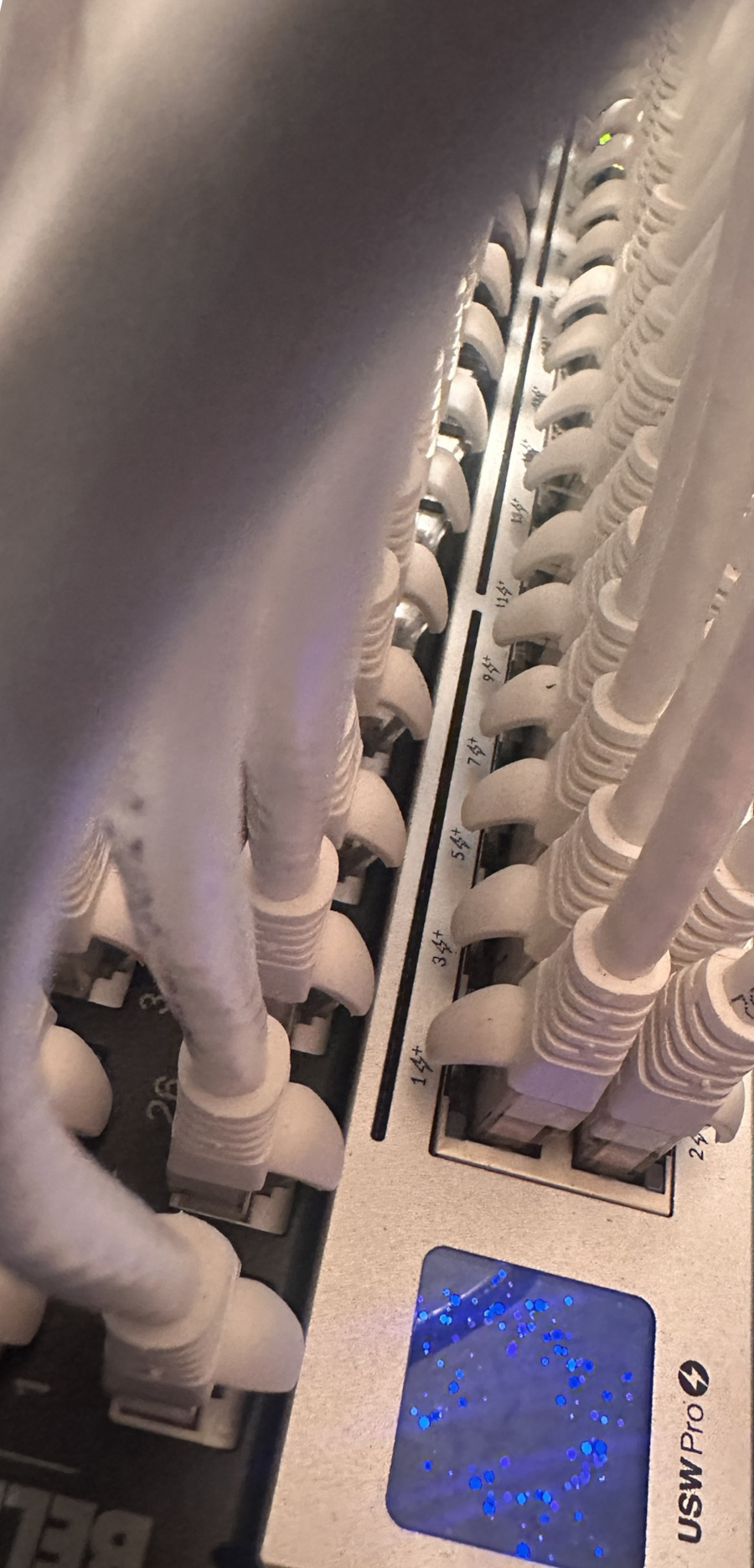

| 48 port switch |
It would be so awesome if the switch vendors did the numbering left-to-right, top-to-bottom, like reading a book. This is less of an issue with the 24 port switches, but I hope we’ll be past those soon. Just an idea.
Conclusion:
I’m looking forward to seeing more from these folks. What’s missing:
- 1U, 48 port switch (w/ 2-4 10G uplinks) and PoE.
- Fully upstream so anyone can install a stock aarch64 distro like Fedora.
- Better CPU, more RAM and more storage. RAID 1 would be sweet.
- Light documentation for recommended best practices.
- Great automation story.
I hope to help out with that last point some day, and mgmt and m9rx.com are here to build with anyone who wants to see their hardware magically come to life. You do the hard electrical engineering, we’ll make usability a dream.
Happy hacking!
James
PS: Special thanks to Luka Perkov and Todd Gregory for setting this all up for me. Best of luck to you all!
You can hire James and his team at m9rx corporation.
You can follow James on Mastodon for more frequent updates and other random thoughts.
You can follow James on Twitter for more frequent updates and other random thoughts.
You can support James on GitHub if you'd like to help sustain this kind of content.
You can support James on Patreon if you'd like to help sustain this kind of content.
Thank you
Your comment has been submitted and will be published if it gets approved.
Click here to see the patch you generated.
Comments
Nothing yet.
Post a comment
